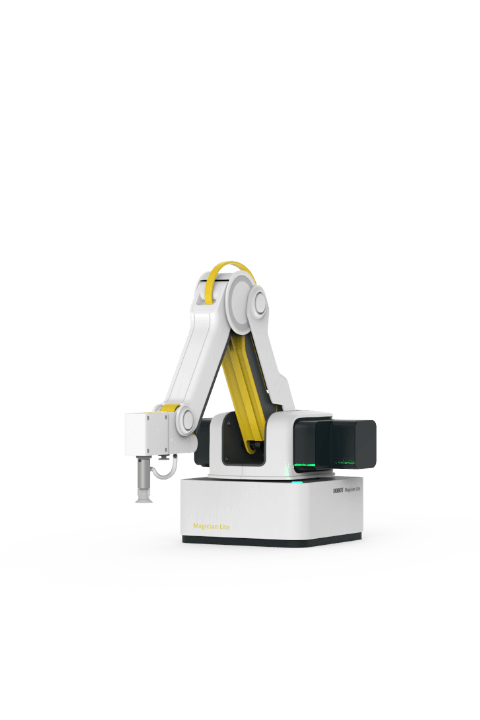

Magician Lite
K12 Öğrenme Çözümleri için Hafif Robotik Kol
DOBOT Magician Lite, DOBOT'un K12 özelleştirilmiş yapay zeka eğitim ekosisteminde çok işlevli, hafif, akıllı bir robotik koldur. Magician Lite, öğrencilerin yaratma özgürlüğünü teşvik etmek için çok sayıda yazılım ve donanım etkileşim yöntemi ve genişletme arayüzü anlamına gelir. Öğrenciler oynayarak yapay zeka ve mekaniğin nasıl çalıştığını öğrenebilirler.
DOBOT'un çeşitli ürün gruplarını nasıl optimize ettiği hakkında daha fazlasını keşfedin.
| DOBOT Magician Lite | |
| Degree of Freedom | 4 |
| Maximum Load | 250g |
| Max Reach | 340 mm |
| Repeatability | ±0.02mm |
| Voltage | 100V-240V AC,50/60 Hz |
| Power Input | 12V ～ 5A DC |
| Working Environment | -5°C～45°C |
| Power | 60W Max |
| Communication | USB Virtual Serial Port / Serial Port |
| Software | DobotStudio/DobotLab |
| Weight | 2.4KG |
| Rear Arm / Forearm | 150mm |
| Base Size | 146mm x 146mm |
| Magic Box | |
| MCU | ARM 32-bit Cortex-M4 |
| Main Frequency | 168 MHz |
| Voltage | 100V-240V AC,50/60 Hz |
| Power Input | 12V ～ 5A DC |
| Working Environment | -5°C～45°C |
| Power | 60W Max |
| Communication | USB Virtual Serial Port/Serial Port/Bluetooth |
| Programming Language | MicroPython |
| Software | DobotStudio/DobotLab |
| Weight | 98g |
| Size | 95mm x 80mm x 21.5mm |
| Axis Motion | |
| Axis 1- Base | -135° to +135° |
| Axis 2- Rear Arm | -5° to +80° |
| Axis 3- Fore Arm | -10° to +85° |
| Axis 4- End Tools | -145° to +145° |
| J1-J3 Max speed | 300°/s |
| J4 Max speed | 200°/s |
| End Tools | |
| Pen Holder | Pen Diameter: 8-12 mm |
| Suction Cup | Built-in air pump drive works under negative pressure, with suction cup diameter of 10mm, 20mm |
| Soft | Built-in air pump drive works under positive and negative pressure, with maximum opening and closing |
| Gripper | distance of 50mm |
| Expansion Interface | ||
| Power Interface | 2 | 4PIN, 12V～3A DC |
| Multi-Functional Communication Interface | 2 | 10PIN, Serial Communication Interface |
| I/O Interface | 6 | Green Terminal, 4PIN, 3.3V/5V-IO, 5V 1A-VCC, Multi-Function Multiplexing Interface, User-Defined I/O, AD, PWM Output, I2C, etc |
| Stepper Motor Interface | 2 | Yellow Terminal, 4PIN, 2-Phase Stepper Motor, 16 Subdivision, 12V 1A |
| 12V Power Interface | 2 | Red Terminal, 2PIN, 12V, 3A Max |
| AI Camera Kit | |
| Dimensions | 50mm*44mm*25mm |
| CMOS | 1/4inch |
| Image pixels | 1M |
| Image Format | YUV/MJPG |
| Data Format | 240*320. 640*480. 1280*720 |
| Maximum Image Transfer Rate | 1280*720@30fps |
| Camera Control | Saturation，Contrast, Acutance |
| White balance | Auto |
| Exposure | Auto |
| Working Temperature | 0℃ to +50℃ |
| Operating voltage | DC 5V |
| Interface | USB2.0 |
| Voice input | Integrated microphone |
| Feature | All-in-one design, integrated microphone, distortion-free lens |
| Camera working angle | 0°-135° |
| Function | Face recognition, image recognition, OCR text recognition, speech recognition, etc. |
